Filters
Liquid, automatic self-cleaning
- FILTERMAT automatic self-cleaning filters allow to cover the majority of applications with its different configurations :
- Basket : generally used for the filtration of cooling water, river water and
- many others applications.
- Scraped surface : for relatively low viscosity applications that can also
- retain fibrous particles.
- Disc : generally used for petroleum products.
- Static sieve-bend : Gravity water filtration with a not too tight filter mesh.
- Paper band : gravity water filtration for relatively small filter mesh sizes.
Basket
- Countercurrent cleaning ;
- 1500 m3/h/unit, 80 μm, min. 2 bar ;
- ST 37-2 + epoxy ;
- Options :
- Stainless steel 316L ;
- Self-cleaning coarse filter ;
- Special configurations on request.
Static sieve-bend
- Gravity ;
- 250 m3/h, 250 μm ;
- 304 stainless steel or 316L stainless steel ;
- Special configuration on request.
Scraped surface
- Cleaning by brushing and/of scraping ;
- 1000 m3/h, 50 μm ;
- 150 Cps ;
- Stainless steel 316 ;
- Special configurations on request.
Disc
- Cleaning by manual or automatic scraping;
- 1000 m3/h, 50 μm ;
- 600 Cps ;
- Cast iron, stainless steel 316L, other
- on request ;
- Special configuration on request.
Paper band
- Gravity ;
- 35 m3/h, 10 to 80 μm ;
- Mild steel or stainless steel ;
- Filter media in PP, Polyester or viscose.
Liquid (manual)
- The range of manual filters for liquids consists of :
Bag filters and filter bag ;
Cartridge filters and filter cartridges ;
Strainer – Basket filters.

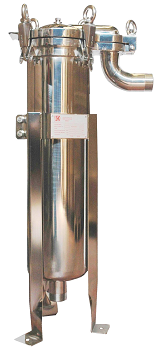

bag filters
- Filter housings can be made of stainless
- steel 304 or 316, of plastics, with coatings
- or of special alloys ;
- Max. 480 m3/h for multi-pockets;
- 0.09 to 6 m² filter area;
- 6 to 25 bar;
- 0.5 to 1500 μm ;
- Special configurations on request.
À cartouche & cartouches filtrantes
- The housings are usually made of 316
- stainless steel, but can be delivered in other
- materials depending on the application ;
- Max. 440 m3/h;
- 0.1 µm absolute at 1000 μm ;
- Special configurations on request.
A panier
- Cast iron or stainless steel body,
- other on request ;
- Stainless steel basket ;
- Single or duplex configurations;
- Max. DN 200 in std ;
- 25 to 5000 μm ;
- Special configurations and dimensions
- on request.
Air filters - HVAC
- The range of FILTERMAT air filters covers all applications.
Our large stock and our cutting workshop allow us a great flexibility and speed of delivery.
Media/filter panels
- Classes G2, G3, G4, F5 ;
- Flat or pleated ;
- Galvanized or plastic frames ;
- All dimensions and materials
- on request.
HEPA
- Classes H10, H11, H12, H13, H14, U15 ;
- All dimensions and materials
- on request.
Bagfilters
- Classes G3, G4, F5, F6, F7, F8, F9 ;
- Synthetic fibres or glass fibres ;
- All dimensions and materials
on request.
Rigid V-cel bagfilters
- Classes F5, F6, F7, F8, F9 ;
- All dimensions and materials
- on request.
Air filter bags
- FILTERMAT air filter bags are made to order taking into account the specifications of the application, dimensions and finish.
Manches filtrantes
- Available in PE, PAC, PPS,
- Nomex/Conex, PI/P84, PTFE, GL ;
- Max. 260°C ;
- All dimensions and materials
- on request.
Air filter cartridges
- Air filter cartridges are available in standard sizes.
Filter cartridges
- Made of glass fibre/polyester
or cellulose; - From 0.3 to 20 μm ;
- Galvanized or stainless steel;
- All dimensions and materials
on request.
