Vannes

• Double seat valves are available in :
• Balanced : B925, B935 (tank bottom), B915PMO (PMO-certified)
• Unbalanced: BZAW3
• All BARDIANI valves are made from solid bar, Ra < 0.8 µm (0.4 or 0.2 µm and certificates on request), min. 10 bar and a lot of configurations available.

• DN15 to DN 150 – 3⁄4’’ to 6’’, 10 bar ;
• Balanced on both stages ;
• Upper and lower seat lifts ;
• Aseptic version with steam barrier ;
• 3.1, Ra, FDA certificates available ;
• Special configurations on request.

• DN 25 to 150, 1 to 6’’, 10 bar ;
• Aseptic version with steam barrier ;
• 3.1., Ra, FDA Certificates available ;
• Spécial configurations on request.

• DN40 to DN 150 – 11/2’’ to 4’’, 10 bar ;
• Balanced ;
• Seat lift ;
• Aseptic version with steam barrier ;
• Certificats 3.1., Ra, FDA available ;
• Special configurations on request.

• 11/2’’ to 4’’, 10 bar ;
•  PMO – 3A certified ;
• Upper and lower Seat lifts ;
• Balanced on both stages ;
• Aseptic version with steam barrier ;
• 3.1., Ra, FDA certificates available ;
• Spécial configuration on request.

• BBZP single seat valves are available in a lot of configurations.
• The BBZPA version has been developed for easy maintenance on diverter valves (multi-body).

Different versions :

Pneumatic
Manual
Tank bottom
Aseptic with vapour barrier
Twin stop

• DN 10 to 150, 1/2’’ to 6’’, 10 bar ;
  Parabolic shutter in option ;
  3.1., Ra, FDA certificates available ;
  Special configurations on request.

• DN 10 to 150, 1/2’’ to 6’’, 10 bar ;
  3.1., Ra, FDA certificates available ;
  Special configurations on request.

DN 10 to 150, 1/2’’ to 6’’, 10 bar ;
Parabolic shutter in option ;
3.1., Ra, FDA certificates available ;
Special configurations on request.

DN 10 to 150, 1/2’’ to 6’’, 10 bar ;
Parabolic shutter in option ;
3.1., Ra, FDA certificates available ;
Special configurations on request.

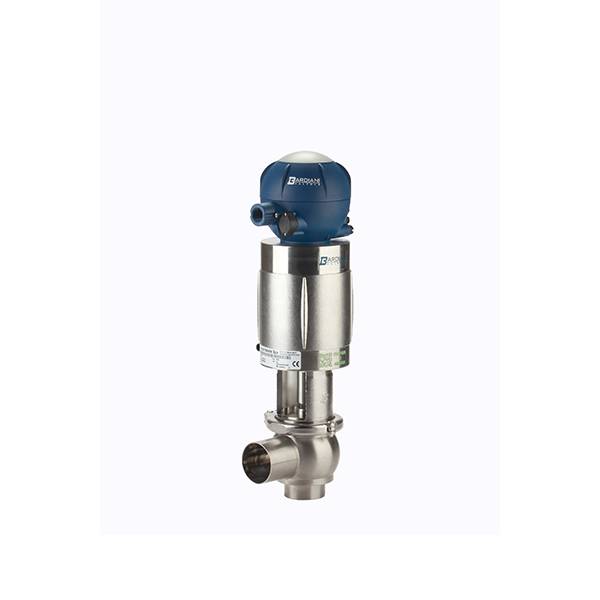

• The BBWP1 aseptic single seat valves are equipped with a single-layer GYLON diaphragm to increase their service life.
• Special configurations on request.

• By-pass valves BBZS1 (manual) & BBZS5 (pneumatic) have been developed to secure installations.
• Very regularly used as a bypass safety valve for positive displacement pumps.
• They are available in a lot of configurations.

• UNIQUE !

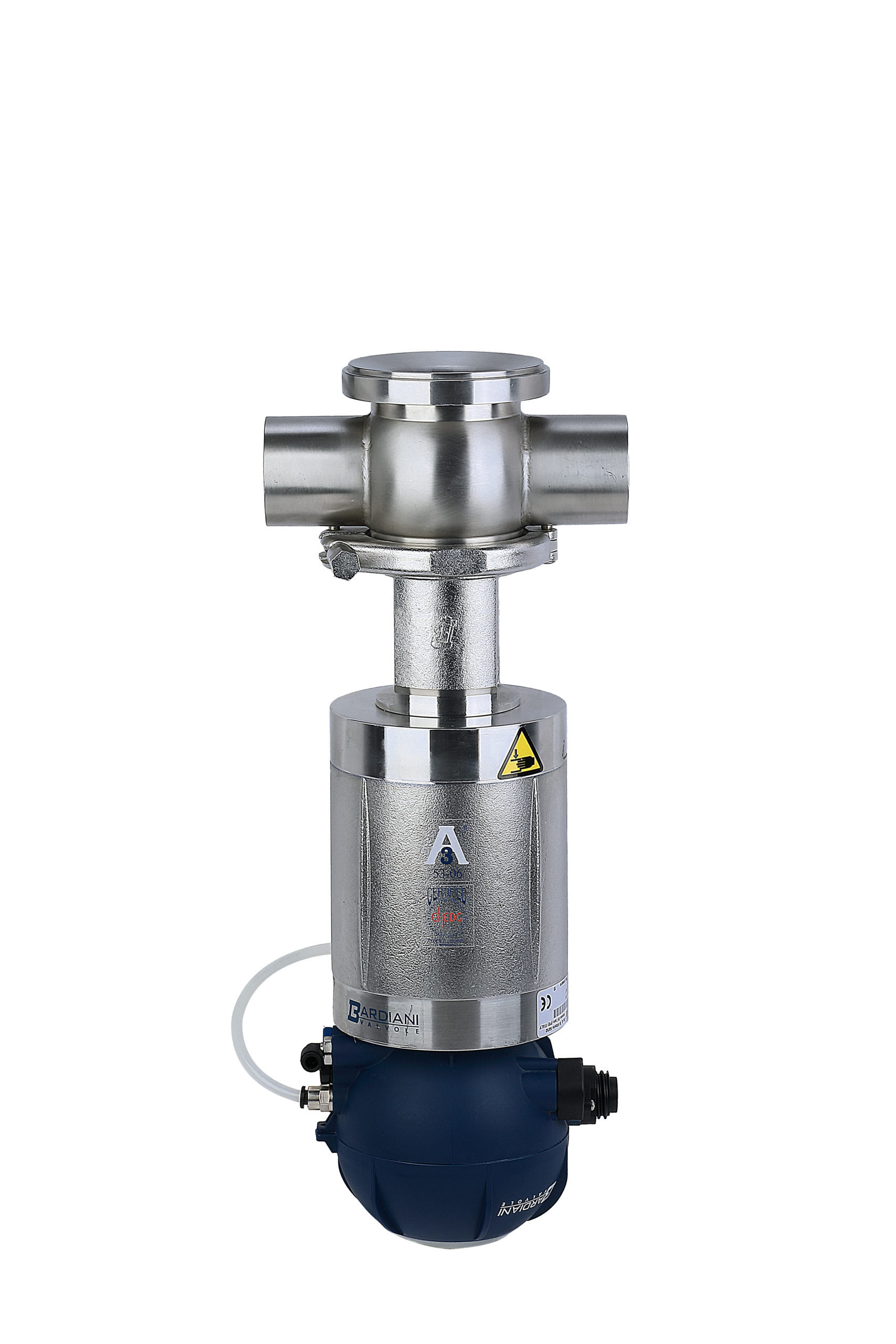

• The BBZQ valve is the only hygienic high pressure valve
  (up to 150 bar) 3A certified.
• A lot of configurations available.

• DN 25 to 100, 1’’ to 4’’ ;
• Aseptic version with steam barrier ;
• 3.1., Ra, FDA certificats on request ;
• Spécial configurations on request.

• The modulating valves are available in pneumatic actuator BBZK or electro-pneumatic BBZPM versions.
• Different configurations are available :
• Multiport body
• Aseptic (With membrane GYLON or steam barrier)
• Seat profile for micro flow, linear or equipotential seating
• Special configurations on request.

• Membrane actuator ;
• DN25 to DN100, 1’’ to 4’’, 10 bar ;
• Aseptic version (membrane or steam Barrier)
• 3.1., Ra, FDA Certificate available ;
• Spécial configurations on request.

• Membrane actuator ;
• DN25 to DN100, 1’’ to 4’’, 10 bar ;
• Aseptic version with membrane ;
• 3.1., Ra, FDA Certificate available ;
• Spécial configurations on request.

• Compact with électropneumatic positioner ;
• DN25 to DN100, 1’’ to 4’’, 10 bar ;
• Aseptic version (membrane or steam barrier)
• 3.1., Ra, FDA certificats  available;
• Spécial configurations on request.

• Compact with électropneumatic positioner ;
• DN25 to DN100, 1’’ to 4’’, 10 bar ;
• Aseptic version with membrane ;
• 3.1., Ra, FDA certificats  available;
• Spécial configurations on request.

• Butterfly valves are available in :
• VVF manuals (4 position stainless steel handle, 5 position plastic handle)
• ZVF (pneumatic).
• WAFER 4 between flanges which have the big ADVANTAGE of being designed to keep the pipes aligned during disassembly.

• DN10 to DN150, 1⁄2’’ to 6’’, 10 bar ;
• Motorisation with positioner ;
• All cannexions and WAFER 4 version available ;
• 3.1., Ra, FDA Certificate on request.

• DN10 to DN150, 1⁄2’’ to 6’’, 10 bar.
• Plastic (5 positions) or Stainless steel (4 positions) or Stainless stelle millimetric handle ;
• All connexion and WAFER 4 version available ;
• 3.1., Ra, FDA certificate on request.

• The ball valves are available in 2 or 3 ways (L or T). Max. pressure 64 bar.

• VVS : Manual version ;
• ZVF : Pneumatic version.

• DN10 to DN 100, 1⁄2’’ to 4’’ ;
• 2 ways version : 25 to 64 bar and
• 3 ways (L or T) : 16 to 40 bar in fonction of the size and connexions ;
• 3.1., Ra, FDA certificate available .

• DN10 to DN 100, 1⁄2’’ to 4’’ ;
• 2 and 3 ways (L or T) version,
• max. 64 bar ;
• All cannexions available :
• Clamps ASME BPE, DIN, … ;
• 3.1., Ra, FDA certificate available.

• The multifunctional bodies allow a visual BBTRD control or with a BBVAR measuring probe.

• DN25 to DN100, 1’’ to 4’’, 10 bar ;
• 3.1., Ra, FDA certificate on request

• DN25 to DN150, 1’’ to 6’’, 10 bar ;
• 3.1., Ra, FDA certificate on request.

• GIOTTO TOP control unit are visible at 360° and available in 24Vdc, As-i, ATEX versions.
• An EASY GIOTTO sensor holder is also available and the position of the valve is visible by transparency.

• Configuration on request ;
• One or two sensors ;
• One, two or three solenoid valves ;
• Seat lift Position ;
• 24 Vdc or ASI BUS ;
• IP 67

ATEX Version.

• Support with or without position detection ;
• One or two optional M12 sensors.

• All our MANIFOLDS are made to measure and by orbital welding.
